Custom Industrial Dehumidifiers Manufacturer - Delivered in 15 days.
3000m3/h large desiccant dehumidifier customization | low dew point Dehumidifier | electric dehumidifier | East Dehumidifier OEM ODM Manufacturing
| Share | |
|---|---|
| Categories | Single Unit |
| Brand | East Dehumidifier |
| Model | SDC-3000M |
| Process Air Flow | 3000m3/h |
| Dehumidity Type | Desiccant |
| Brand Name | East Dehumidifier OEM ODM Manufacuring |
| Location | Zhejiang, China |
| Condition | Brand New |
| Dehumidifying capacity(20°C,60%) | 19kg/h |
| Votage/Frequency | 380V/50Hz |
| Core Components | Motor, wheels |
| Function | Air Dry |
| Warranty | 1 Year |
| FOB port | Shanghai or Ningbo |
| Terms of Payment | Western Union, MoneyGram, T/T, Paypal |
OEM / ODM Available
EAST Desiccant Rotor Dehumidifier · Single Unit

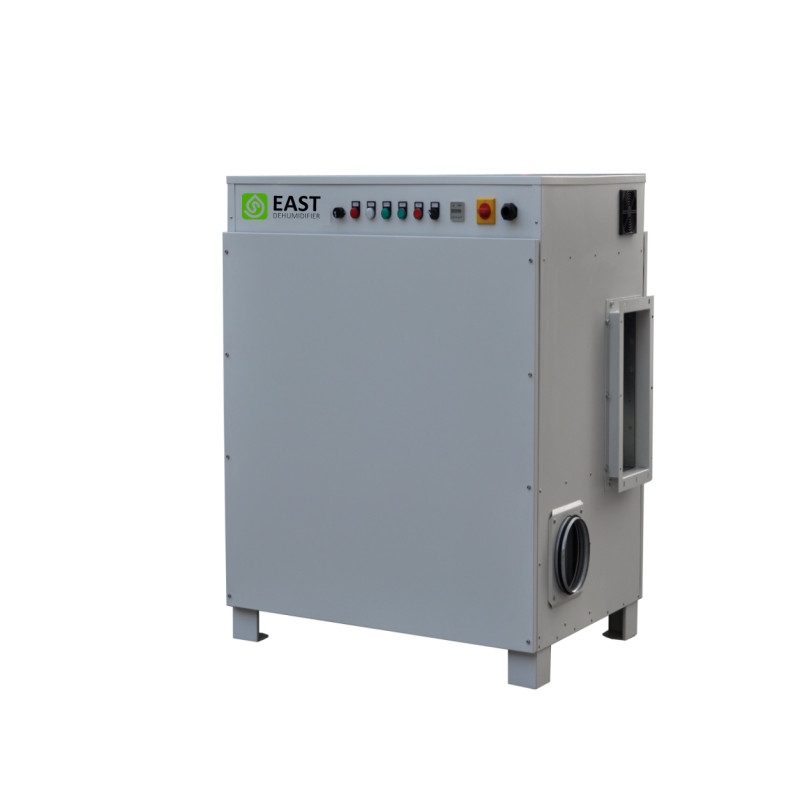

SDC-3000M Flagship Desiccant Dehumidifier
The flagship 3000 m³/h desiccant rotor dehumidifier for the most demanding environments — maximum drying capacity at low dew point for large-scale industrial processes.
Core Features Built for Reliable Deep Drying
Every EAST single-unit desiccant dehumidifier combines a proven rotor core with intelligent control so you get steady low-humidity air without babysitting.
Proflute Rotor Core
A world-renowned desiccant rotor removes moisture continuously and is built to run trouble-free for more than 10 years.
PTC Regeneration Heating
PTC elements regenerate the rotor with less energy, keeping power consumption low while drying performance stays high.
SCR Constant-Temperature Control
The SCR system keeps internal temperature stable, so dehumidifying performance remains reliable even at low dew points.
Intelligent Humidity Control
A precise control system with humidistat adjusts operation automatically to hold your target humidity level.
Advantages That Lower Your Operating Costs
Beyond removing moisture, this unit is designed to save you time, energy and maintenance over its service life.
- Low noise, high efficiency — excess moisture is removed without disturbing the workspace.
- Process air inlet and dry air outlet on the same side for fast, simple installation.
- Auto and Manual working modes give you full flexibility on site.
- ABB, Omron and Schneider electrical components for dependable long service.
- Delay-time and earth-leakage protection circuits protect the unit and your facility.
- Auto stop protection for the rotor prevents damage and extends service life.
Where the SDC-3000M Delivers the Biggest Benefit
A single compact unit covers the environments that need dependable low humidity most.
Pharmaceutical
Maintains the stable low humidity that drug production and storage require, protecting product quality and consistency.
Cold Storage
Keeps refrigeration areas free of frost and condensation, working efficiently even at low temperatures.
Laboratory
Holds precise humidity for sensitive instruments, samples and testing rooms where accuracy is non-negotiable.
Storage & Warehouse
Protects stored goods from moisture damage and mildew all year round, reducing waste and rework.
Technical Specifications — SDC Series
The SDC-3000M column is highlighted below. Full series data is shown so you can size across the range.
| Model | SDC-300M | SDC-600M | SDC-700M | SDC-800M | SDC-1000M | SDC-1200M | SDC-1500M | SDC-2500M | SDC-3000M |
|---|---|---|---|---|---|---|---|---|---|
| Voltage / Frequency | 220V/50Hz | 220V/50Hz | 220V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Dehumidifying capacity (20°C,60%) | 2.0kg/h | 3.0kg/h | 4.0kg/h | 4.5kg/h | 7.5kg/h | 8.5kg/h | 10kg/h | 15kg/h | 19kg/h |
| Power rating | 2.0KW | 4.5KW | 7KW | 10KW | 11KW | 13KW | 15KW | 24KW | 27KW |
| Current | 9A | 20A | 32.5A | 16A | 18A | 20.5A | 23A | 37.5A | 42A |
| Process air flow | 320m3/h | 580m3/h | 700m3/h | 850m3/h | 1100m3/h | 1250m3/h | 1550m3/h | 2500m3/h | 3000m3/h |
| Reactivation air flow | 110m3/h | 200m3/h | 220m3/h | 260m3/h | 400m3/h | 450m3/h | 580m3/h | 925m3/h | 1100m3/h |
| Process air flow pressure | 80Pa | 100Pa | 120Pa | 150Pa | 150Pa | 200Pa | 200Pa | 400Pa | 400Pa |
| Reactivation air flow pressure | 50Pa | 70Pa | 70Pa | 100Pa | 100Pa | 150Pa | 150Pa | 200Pa | 200Pa |
| Inlet size | Φ125mm*2 | Φ125mm*2 | Φ200mm*2 | Φ200mm*2 | Φ200mm*2 | Φ250mm*2 | Φ250mm*2 | 522*286/Φ400mm | 522*286/Φ400mm |
| Outlet size | Φ80mm*2 | Φ100mm*2 | Φ125mm*2 | Φ150mm*2 | Φ150mm*2 | Φ160mm*2 | Φ160mm*2 | Φ200mm*2 | Φ200mm*2 |
| Applied Temperature | -10~+50℃ | -10~+50℃ | -10~+50℃ | -10~+50℃ | -10~+50℃ | -10~+50℃ | -10~+50℃ | -10~+50℃ | -10~+50℃ |
| Dimension | 680*425*400mm | 585*420*866mm | 1080*550*671mm | 875*640*1232mm | 875*640*1232mm | 880*678*1238mm | 880*678*1238mm | 1312*856*1300mm | 1312*856*1300mm |
| Packed Dimension | 780*525*550mm | 685*520*1016mm | 1280*650*821mm | 975*740*1382mm | 975*740*1382mm | 980*778*1388mm | 980*778*1388mm | 1412*956*1500mm | 1412*956*1500mm |
| Net Weight | 45 kg | 70 kg | 100 kg | 150 kg | 160 kg | 175kg | 180 kg | 270 kg | 280 kg |
| Gross Weight | 55 kg | 80 kg | 110kg | 160 kg | 170 kg | 190 kg | 195 kg | 290 kg | 290 kg |
* Dehumidifying capacity measured at 20°C and 60% RH inlet condition. Specifications may be adjusted for customization projects.
Tested and Verified Before Dispatch
Each EAST unit is assembled and checked in our own factory, so what arrives on site is ready to run.
- Rotor, fan and regeneration performance individually verified.
- Electrical and control systems tested under load.
- Sealing and air-flow pressure checked against specification.
- Export-grade packaging with complete documentation.
Frequently Asked Questions
What dew point can the SDC-3000M reach?
As a desiccant rotor dehumidifier, the unit achieves far lower dew points than condensing units — suitable for low-humidity processes down to deep-drying conditions, with stable output verified at 20°C, 60% RH in the specification table above.
Can it operate in cold environments?
Yes. Unlike refrigerant dehumidifiers, the desiccant rotor keeps working at low temperatures, which is why it is widely used in cold storage and outdoor-cold workshops. The applied temperature range is -10°C to +50°C.
Do you support OEM / ODM customization?
Absolutely. EAST Dehumidifier is an OEM/ODM manufacturer. We can customize airflow, regeneration options, voltage, control systems and packaging to match your market requirements.
