360 L/D Dehumidification Systems | Dehumidifier In Ceiling | Dry Air Dehumidifier | High Capacity Dehumidifier | East Dehumidifier Wholesale
| Categories | Grow Room Dehumidifier |
|---|---|
| Brand | East Dehumidifier OEM ODM Manufacturing |
| Model | SDD-360L |
| Installation | Ceiling / Wall Mounted |
| Dehumidifying Type | Refrigeration |
| Refrigeration Technology | Compressor |
| Compressor Type | Rotary |
| Refrigerant | R410a |
| Cooling Capacity | 16.4 Kw |
| Brand Name | East Dehumidifier OEM ODM Manufacturing |
| Location | Zhejiang, China |
| Condition | Brand New |
| FOB port | Shanghai or Ningbo |
| Terms of Payment | Western Union, MoneyGram, T/T, Paypal |
| Download DOC |  |
| Update Time | May 31,2023 |
Detail Information
EAST SDD Serise Dehumidifiers
EAST SDD serise Grow Room Dehumidifiers are designed for cultivation, ware house, green house, basement, swimming pool with over head installation. They utilize world-famous compressor, big heat exchanger and centrifugal fan to achieve maximum dehumidifying efficiency and performance. Not only to save the energy consumption, but also to save owners’ investment cost.
Different dehumidification capacity will match different cultivation size. The largest model SDD-960L can meet dehumidification 2020 pints/day (960L/D） at environment 86℉ RH80%. It is widely used for controlling humidity while cultivating cash crops in North America.
Thickened frame metal body is designed for long life installation on ceiling. Saving each floor space for cultivation. Duct kits can be connected on both inlet and outlet.
The accurate humidity controller is already fixed with comprehensive logic circuit. Plants have different humidity requirements with different growth periods. Setting different humidity requirements at different growth periods will maximuize fruitful performance. Owners do not need additional cost to buy controllers again. On the other hand, the third-party controller system can be connected to SDD OEM models if requested in advance.
The optional filters are available for SDD series. Normal filters, medium efficiency filters or high efficiency filters can be chosen for different branding requirements.
EAST dehumidifier manufacturer is open for all world branding buyer to OEM and ODM. Private controller pannel, own logo print, extra function combination, whole production supervision are all available.
High Capacity Dehumidifier
Features
Firm frame metal plate body
Clear design and crafts
Long life centrifugal motor
Parameter SDD-360L
Cooling Capacity | 56,000 BTU | 16.4KW |
|
Water Removal Capacity @30℃, RH80%, 24hrs |
760 Pints
|
360L
|
Supply Voltage | 380/480V | 380/480V |
Rated Power | 6.5 Kw | 6.5 Kw |
Rated Amps | 9 A | 9 A |
Air Volume @ 0.0" ,CFM | 2350 | 4000m³/h |
Static Pressure | 100~150 Pa | 100~150 Pa |
|
Working Temperature
|
41℉~100℉
|
5℃~38℃
|
Humidity Range (RH) | 40%~95% | 40%~95% |
Net Dimensions | 43.3" x 50.4" x 27.4" | 1100x1280x695mm |
Packed Dimesions | 47.3" x 54.3" x 33.5" | 1210X1320X845mm |
|
Net Weight
|
462 Lbs
|
210Kg
|
|
Gross Weight
|
507 Lbs
|
220Kg
|
Air Inlet Flange Size | 39.5" x 20.6" | 1004x524mm |
Air Outlet Flange Size | 39.5" x 20.6" | 1004x524mm |
Noise | ≤70dB | ≤70dB |
Applying Area | 3000~5000 Sqft | 300-500㎡ |
SDD-360L Manuals Download
The standard manuals in English version are provided by EAST manufacturer. You can add your own logo or share your requirement to supplement the manuals and any other instructions.
The specifications can be also provided as well as logo printing, name plate making.
Buyers' own manuals or instructions are also welcomed.
The whole production process can be supervised by videos or photos or formal inspection report.
Production order tracking system makes your business easier.
Application

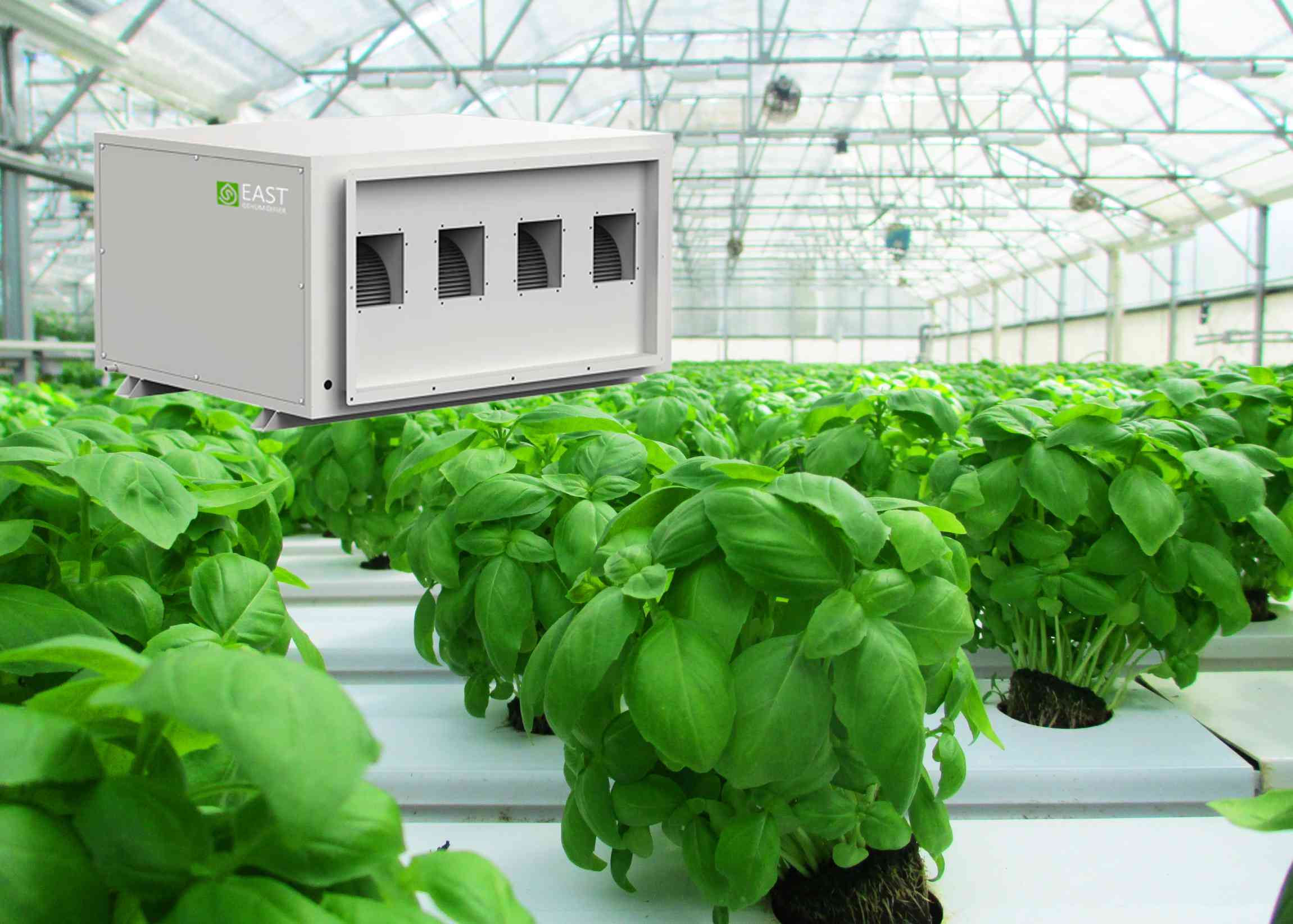

Plant Grow humidity control
Suitable humidity is essential for plants

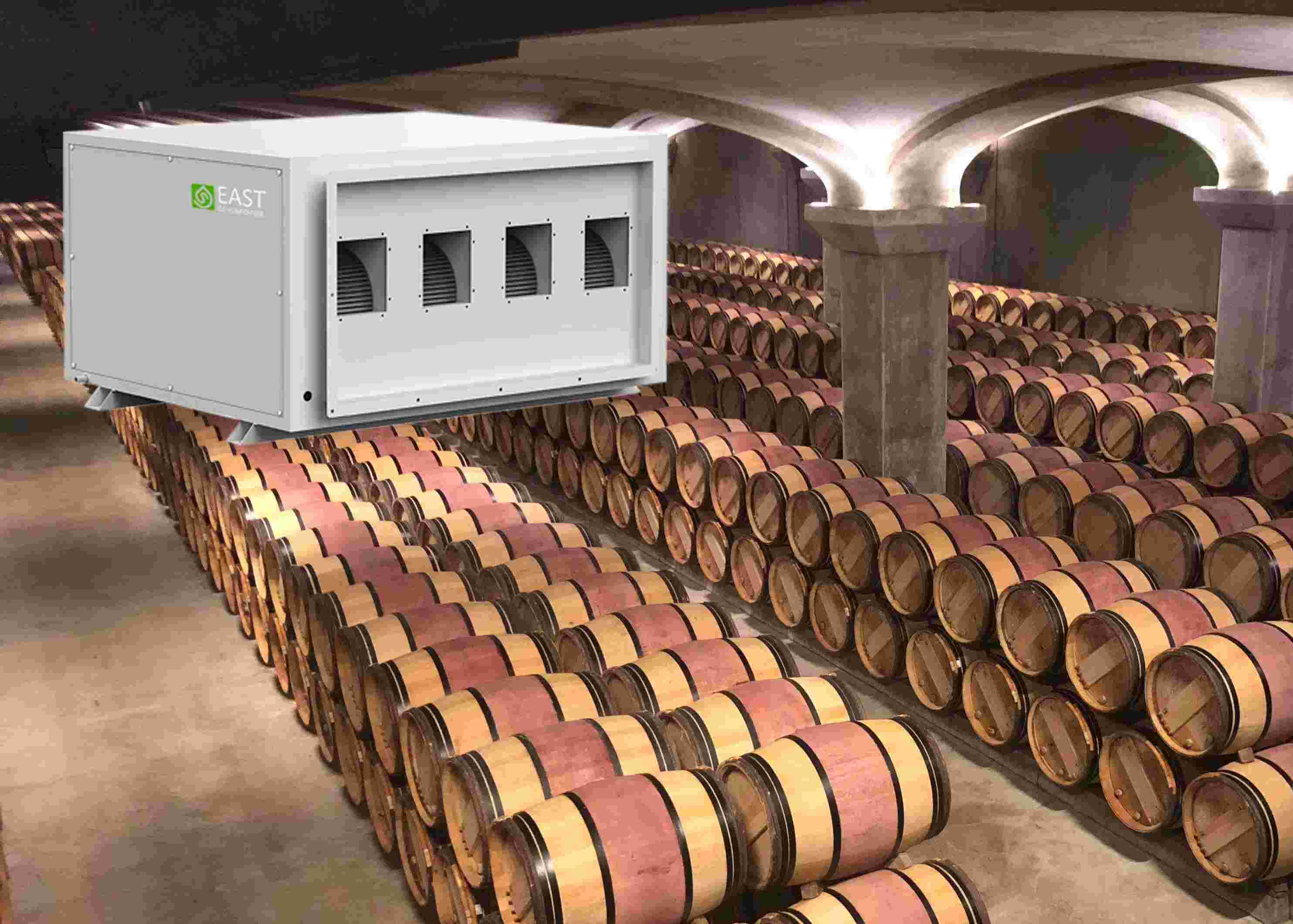

Wine storage with suitable humidity
To ensure your wine at good humidity condition.
Principle of Dehumidifier
The priciple of air circulation.
The wet air will be drawn into the machine and passed through the heat exchanger. So the moisture in the air will be condensed into water on the condenser and dry air will be released out of the dehumidifier.
The principle of refrigerant.
High pressure refrigerant liquid enters into the evaporator after throttling by capillary. The refrigerant is evaporated as low temperature and low pressure gas by absorbing thermal from air after heat exchange. The low temperature low pressure refrigerant gas is inhaled into the compressor, after compressor compressing, the gas become high temperature high pressure refrigerant gas and get into the condenser. Then the refrigerant gas get into the condenser, after heat dissipation, the refrigerant gas become high pressure refrigerant liquid. Above is a complete cycle of refrigerating after repeating.
Packaging And Shipping
Packaging And Shipping
Wood packing is a must for dehumidifiers international shipping. To port or to door, get flexible, reliable and affordable shipping solutions that fit your business.
*Fixing with screw on plywood for stable transportation.
* Wrapped with poly to prevent scratching.
*Reserved forklift holes at bottom of carton.
* FOB, CIF, DDP intercoms are welcomed.
After-Sales Guarantee
