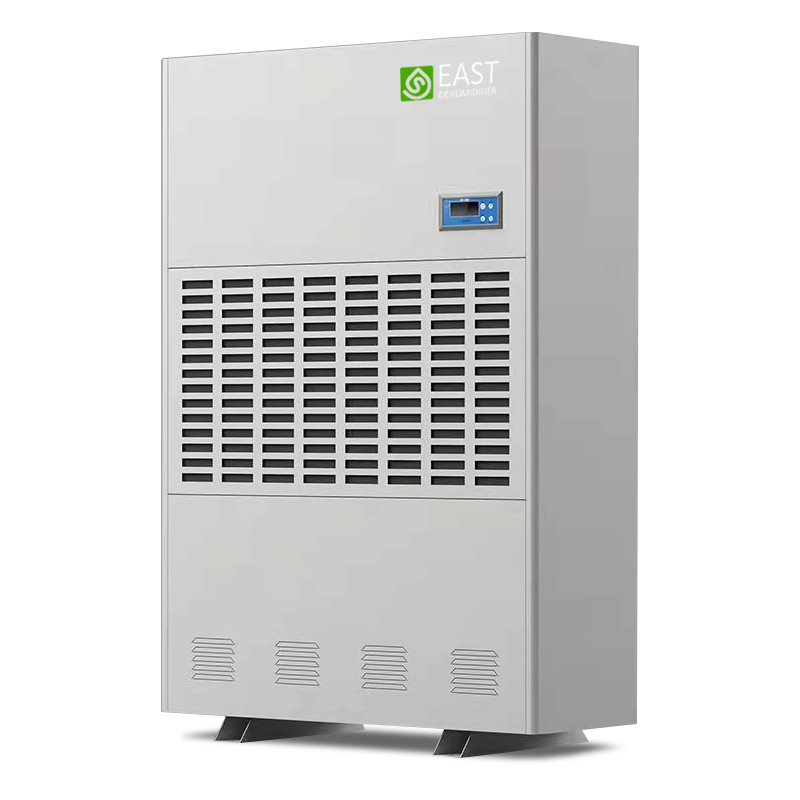

480 L/D High Efficiency Dehumidifier | Industrial Dehumidification Equipment | Room Air Dehumidifier | EAST Industrial Dehumidifier Manufacturer
480 L/D High Efficiency Dehumidifier | Industrial Dehumidification Equipment | Room Air Dehumidifier | EAST Industrial Dehumidifier Manufacturer
| Categories | Industrial Dehumidifier |
|---|---|
| Brand | East Dehumidifier OEM ODM Manufacturing |
| Model | SDI-480L |
| Installation | Universal wheel / Floor standing |
| Dehumidifying Type | Refrigeration |
| Refrigeration Technology | Compressor |
| Compressor Type | Rotary |
| Refrigerant | R410a / R407c |
| Cooling Capacity | 16.4 Kw |
| Brand Name | East Dehumidifier OEM ODM Manufacturing |
| Location | Zhejiang, China |
| Condition | Brand New |
| FOB port | Shanghai or Ningbo |
| Terms of Payment | Western Union, MoneyGram, T/T, Paypal |
| Download DOC |  |
| Update Time | Apr 23,2024 |
EAST industrial dehumidifiers are designed for industry space bigger than 500 cube meters. Quality metal plate with CNC machine cutting, and painted with anti-corrosion paint, solid and long working life. The units use heavy industry quality Panasonic compressor and thickened inner grooved copper pipe to reach the best efficient of dehumidifying. High accuracy humidity sensor from Shinyei Japan has the feature of high anti-interference to make the units working more accurate. The intelligent control system has the function of malfunction self-inspection, automatic power off, continuous working and safety protection. Humidity control range 45%~99% RH. Water removal capacity up to 1000 liters per day
High Efficiency Dehumidifier
Features
- Automatic defrosting
- Big air volume 5600m³/h
- Large heat exchanger to save energy
- Humidity control range 45%~99%RH
- Eco-friendly refrigerant R410a/R407c
- Timed on/off setting with memory function
- Rs485 socket with Modbus protocol connection
- Refrigerant low and high pressure protection of compressor
- Compressor start/stop according to ambient humidity
- World famous brand compressor with safety protection
|
Model no.
|
SDI-480L
|
|
Cooling Capacity | 56,000 BTU | 16.4 KW |
Water Removal Capacity @86℉, RH80%, 24hrs | 1015 Pints | 480L |
Supply Voltage | North America: 440~480v/60hz three phase Europe and China: 380~400v/50hz | |
Rated Power | 6700W | |
|
Rated Amps
|
11.0A
|
|
|
Air Volume @ 0.0" ,CFM
|
3300
|
5600m³/h
|
|
Working Temperature
|
41℉~100℉
|
5℃~38℃
|
Humidity Range (RH) | 40%~95% | |
Net Dimensions | 47" x 19.7" x 68.7" | 1195x500x1745mm |
Packed Dimesions | 50.2" x 22.9" x 76.5" | 1295x600x1845mm |
Net Weight | 430 Lbs | 195Kg |
Gross Weight | 474 Lbs | 205Kg |
Noise | ≤70dB | |
Applying Area | 4,500~7,000 Sqft | 450-700㎡ |
World-famous brand compressor
High pressure refrigerant liquid enters into the evaporator after throttling by capillary. The refrigerant is evaporated as low temperature and low pressure gas by absorbing thermal from air after heat exchange. The low temperature low pressure refrigerant gas is inhaled into the compressor, after compressor compressing, the gas become high temperature high pressure refrigerant gas and get into the condenser. Then the refrigerant gas get into the condenser, after heat dissipation, the refrigerant gas become high pressure refrigerant liquid. Above is a complete cycle of refrigerating after repeating.
- We provide 12 months warranty for whole unit. If any problem due to our quality within 12 month, please send photo or video to us, we will send the broken parts to you free.
- We provide 36 months warranty for the compressor.
- The single serise number of each machine can be kept in EAST system, so that we can trace the production source.
