100% Support Third-Party Controller for Easy Connection To Your Grow Facilities
Humidity Control & Ventilation & 24V DC Source
EAST ONE Dehumidifier supports third-party controller on the market to connect to your grow facilities, like Honeywell, Trolmaster etc. That makes things easy for general control on one system to set up the desired humidity, monitor the room humidity as well as ventilation. EAST ONE Dehumidifier also provide our own controller for your optional choice, we’re opening to develop new functions on the control way with you, such as APP, WIFI, Bluetooth etc.
Efficient Moisture Removal Capacity At Low Amps Draw To Save The Initial Investment
ECM Fan & Thermal Expansion Valve & Maximized Heat Exchanger
Efficiency increasing of dehumidifier is the goal of East Dehumidifier to pursue. That makes us to use the high quality compressor, well soldered cooper pipe, maximized heat exchanger, thermal expansion valve and ECM fan to maximize the use ratio of every amps draw.
Dehumidifier Humidistat DHD100 for Grow Room Dehumidifiers EAST ONE and EAST MAX
A new multiple functional controller(DHD100) is also provided with the EAST ONE & MAX grow dehumidifier. It can be used not only for EAST ONE or MAX grow dehumidifiers, but also can be used as a third party controller to other modern brand dehumidifiers.
In order to match current modern dehumidifiers & third party controller system perfectly. The EAST ONE Grow Dehumidifier provide 24V DC power for both 24V AC or DC third party controller. While the controller SDT-24DA can be powered by both 24V AC or DC.
Long-life Brushless Direct Drive Fan
EAST ONE grow room dehumidifiers use brushless direct drive EC motor cooperated with centrifugal fan. Thanks to the brushless rotor,the noise will be 50% lower. And there will be no mechanical wear of rotor or brush, which will contribute to longer life of both fan and machine. The motor will directly drive centrifugal fan, so that the air flow will be much more stable and smooth. All of these will bring higher efficiency and longer life.

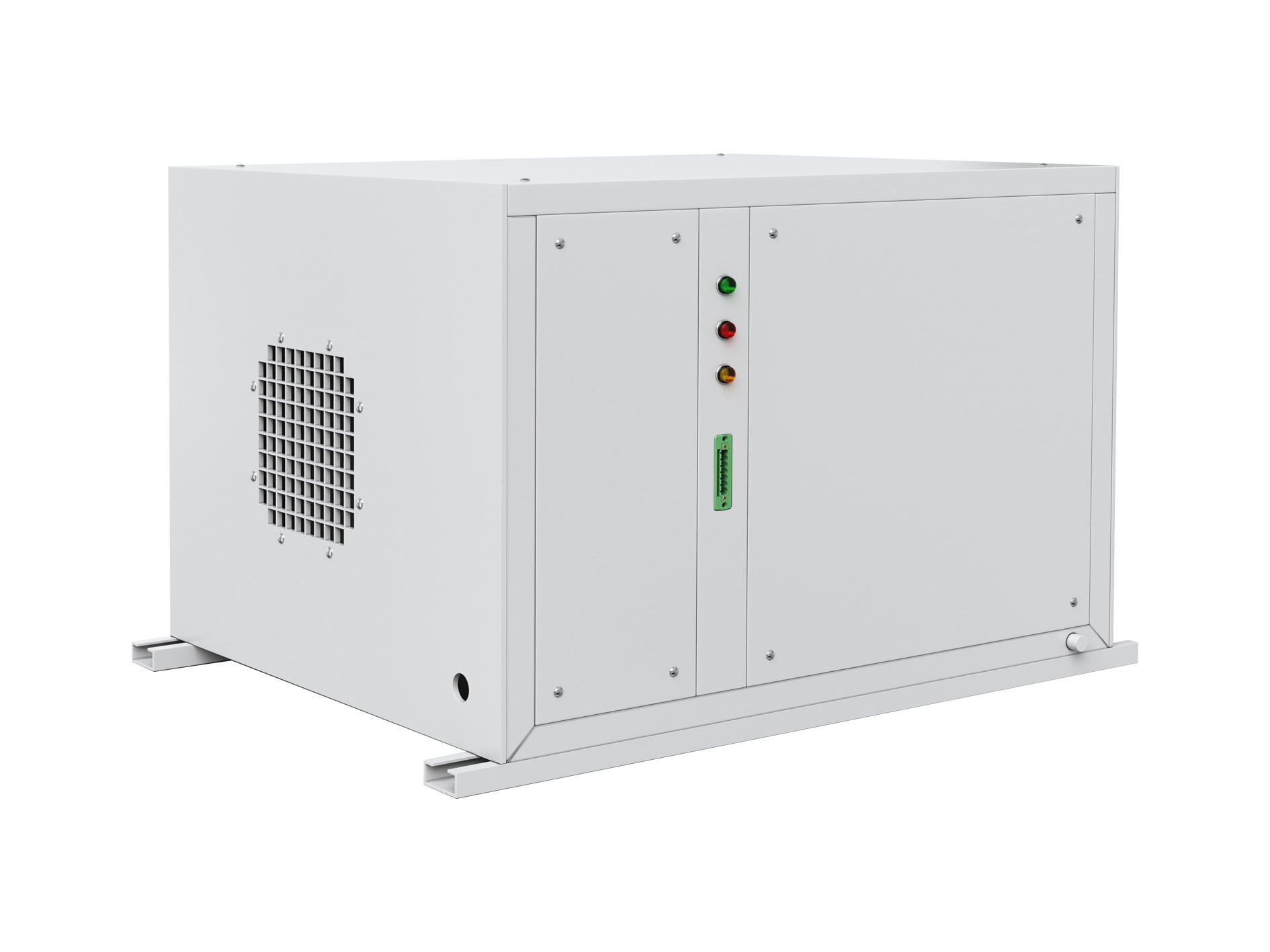

EAST ONE and EAST MAX Exclusively Grow Room Designed Dehumidifiers. Third-Party Controller Ready Terminal Ports.
1. All metal plate framed structure shell.
2. Separated electrical box for easily maintaining.
3. Low voltage control.
4. Opposite air inlet and outlet to reduce efficiency interference.
5. Duct kits as optional accessories can be easily connected.
6. Long-life brushless direct drive fan. Noise 50% lower.
7. Memory function of operating mode after power outages.
8. High efficiency rotary compressor.
Download EAST ONE (SDT-150L) MANUAL →
East Dehumidifier FAQ - Frequently Asking Questions
How can I connect EAST Grow Controller with EAST Grow Dehumidifier?
The EAST Grow Controller is already fixed with plug, you can directly plug into the EAST Grow Dehumidifier and control for dehumidifying or ventilating mode.
You can use below wiring scheme to extend the controlling wires.

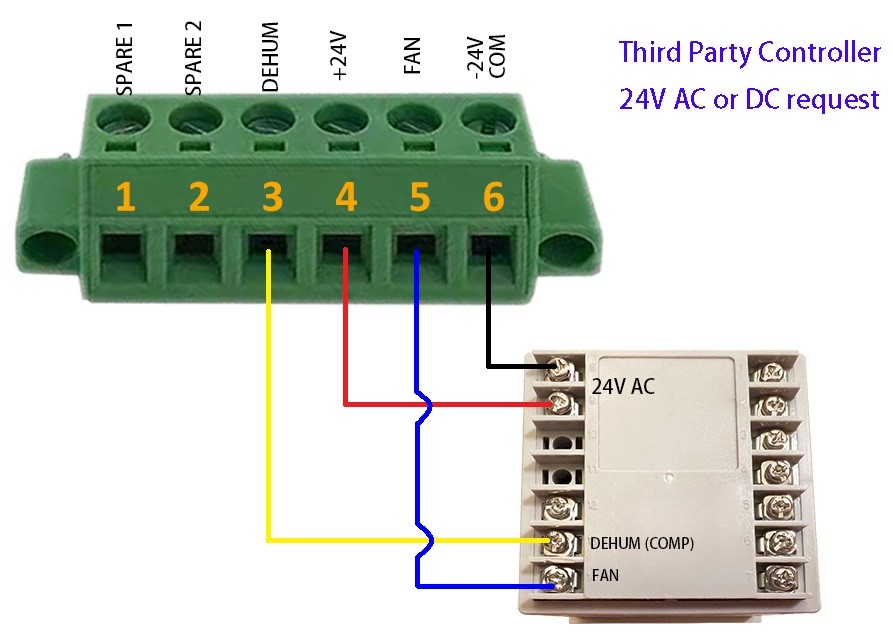

How can I connect EAST Grow Dehumidifier with Third Party Controller?
The updated EAST Grow Dehumidifier is available for Third Party Controller. In order to match current modern dehumidifiers & third party controller system perfectly. The updated EAST Grow Dehumidifier provide 24V DC power for both 24V AC or DC third party controller(40VA max), low voltage control. You can use below wiring scheme to connect third party controller.
Is there any complicated setting on Controller or Machine?
The controller DHD100 is only a dehumidifier humidistat combined with ventilation mode. There is no any complicated time setting or alarm setting on controller. You can only power on and set your desired humidity, then machine will work or stop automatically.
Auto-restart after power outages.
Besides the Controller LCD, can I know the Working Status from Machine?
Yes, of course. In order to easily understand the working status of each dehumidifier, there are LED lights with different colors to show the working status in case it is not convenient for you to check on controller display.
Need more help? Please send inquiry to East Dehumidifier or click here to learn more
How to Choose Dehumidifiers for Grow Rooms?
Mostly people use dehumidifiers for plant requires relative humidity at 40~60%. You can grow a such single plant to a good size in a 2×2 tent. And 3×3, 4×4 or even 5×5 tent for a single plant will be much better for plant thriving. But as the air will circulate in the grow room. It will be much easier to choose the dehumidifiers by room volume.
1. When you use a 20-foot container as a grow room?
The inside dimensions of a 20-foot container are 19'4" long x 7'8" wide x 7'10" high. So when you use 20-foot container as a grow room, the volume is 1,172 cubic feet. A unit of SDD-58L or SDD-90L is available for such grow room.
If you need a third party controller to control all of your grow facilities, the SDT-150L will be your best choice. Do remember bigger dehumidification should be considered when building up you grow room in case the high humidity climate or the flowering stage of plant growing.
Room Type: 20-foot container, 1170 cubic feet volume.
Suggested Dehumidifiers:
Option A: 2 units of SDD-58L
Option B: 1 unit of SDD-90L
2. When you use a 40-foot container as a grow room?
The inside dimensions of a 40-foot container are 39' 5" long x 7' 8" wide x 7' 10" high.
So when you use a 40-foot container as a grow room, the volume is 1,360 cubic feet. 2 units of SDD-58L or 2 units of SDD-90L will be OK for such container grow room.
If you need a third party controller to control all of your grow facilities, the SDT-150L will be your best choice. Please understand that the 40-foot container is 39' 5" long. So at least 2 units dehumidifiers installed in different part of the container will efficiently increase the air circulation and dehumidification.
Room Type: 40-foot container, 1360 cubic feet volume.
Suggested Dehumidifiers:
2 units of SDD-90L
3. When the grow room is 30 feet across and50 feet long.
The typical stand grow room is 30 feet across and 50 feet long. 8 feet will be the normal grow room height. Total volume will be 12000 cubic feet. Basically 3 units of grow dehumidifier SDT-150L or 2 units of grow dehumidifier SDT-240L will be enough for such grow room to maintain RH40~60% for plant grow.
Room Type: 30 x 50 x 8 Feet, 12000 cubic feet volume.
Suggested Dehumidifiers:
Option A: 3 units of SDT-150L
Option B: 2 units of SDT-240L
4. When the grow room is 30 feet across and100 feet long.
Once the grow room is 30 feet across and 100 feet long. 8 feet will be the normal grow room height. Total volume will be 24000 cubic feet. Basically 5 units of grow dehumidifier SDT-150L or 3 units of grow dehumidifier SDT-240L will be enough for such grow room to maintain RH40~60% for plant grow. But as the room is 3 times longer than width, the installation of dehumidifiers should keep the wind circulation continuously so as to efficiently meet high dehumidification.
Room Type: 30 x 100 x 8 Feet, 24000 cubic feet volume.
Suggested Dehumidifiers:
Option A: 5 units of SDT-150L
Option B: 3 units of SDT-240L
5. If the grow room is totally different or even much bigger than normal size.
Please contact us. We can offer different options based on your unique grow environment.
